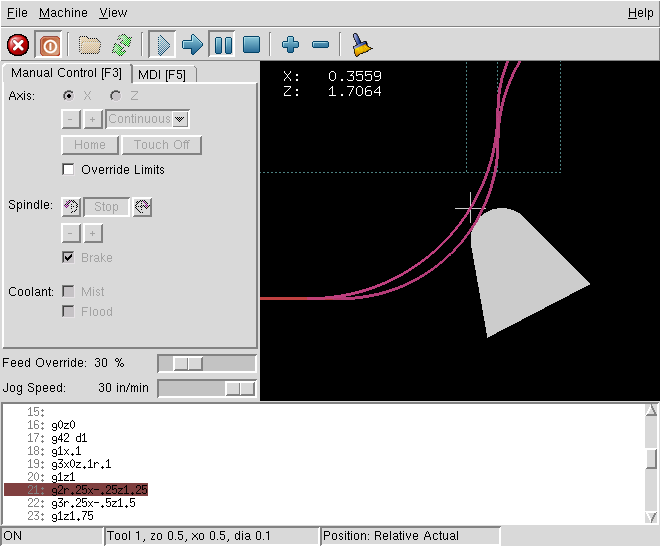

About AXIS Get EMC2 Documentation Translations ETCH CNC Developer Homepages: Chris Radek Jeff Epler Related sites: linuxcnc.org linuxcnc wiki | « Where's my AXIS 1.3? | Newest entries | A few more features trickle in to CVS » While Chris is busy improving emc2's lathe support, I've been improving the display. This screenshot shows the tool shape and origin, taken from the tool table (including the tip diameter and the angles). As you can see, the tool origin is following the inner (compensated) path while the tip of the tool is following the outer (programmed) path. Entry first conceived on 28 June 2006, 18:28 UTC, last modified on 28 June 2006, 19:00 UTC |
